GGH Comfort Series Adjustable Mechanical U-Channels

The GGH MECUADJ Adjustable Mechanical U-Channel provides a versatile, hassle-free solution for monolithic tempered glass panels, now with adjustable mounting holes for glass brackets to enable fine-tuned installation. Designed for glass thicknesses of 3/8" to 1/2" (10 to 12 mm), this channel system requires no glass drilling, making it quick and easy to install. Available in a standard 10FT (120") header length, it offers secure support without the need for wet silicone glazing.

Key Features:

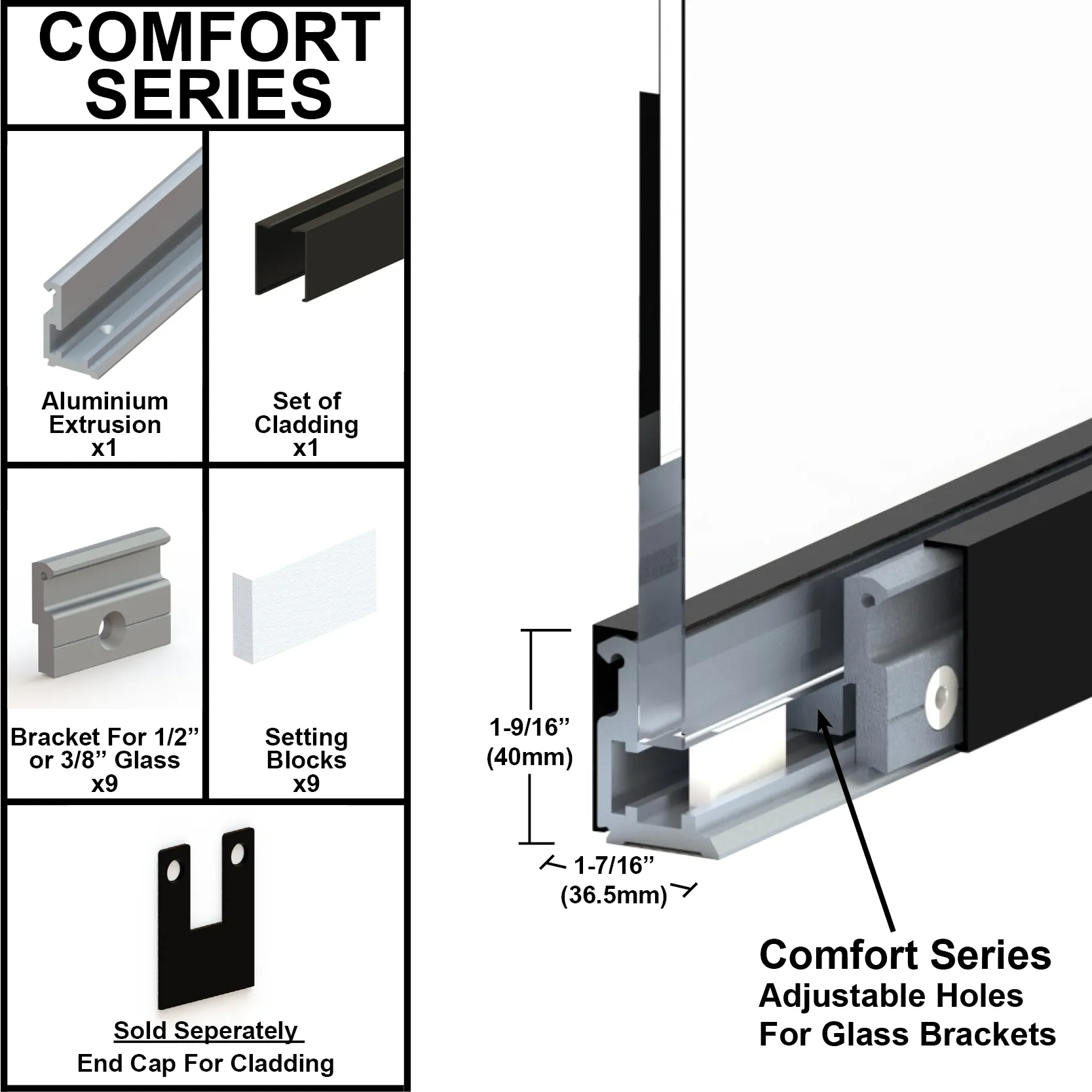

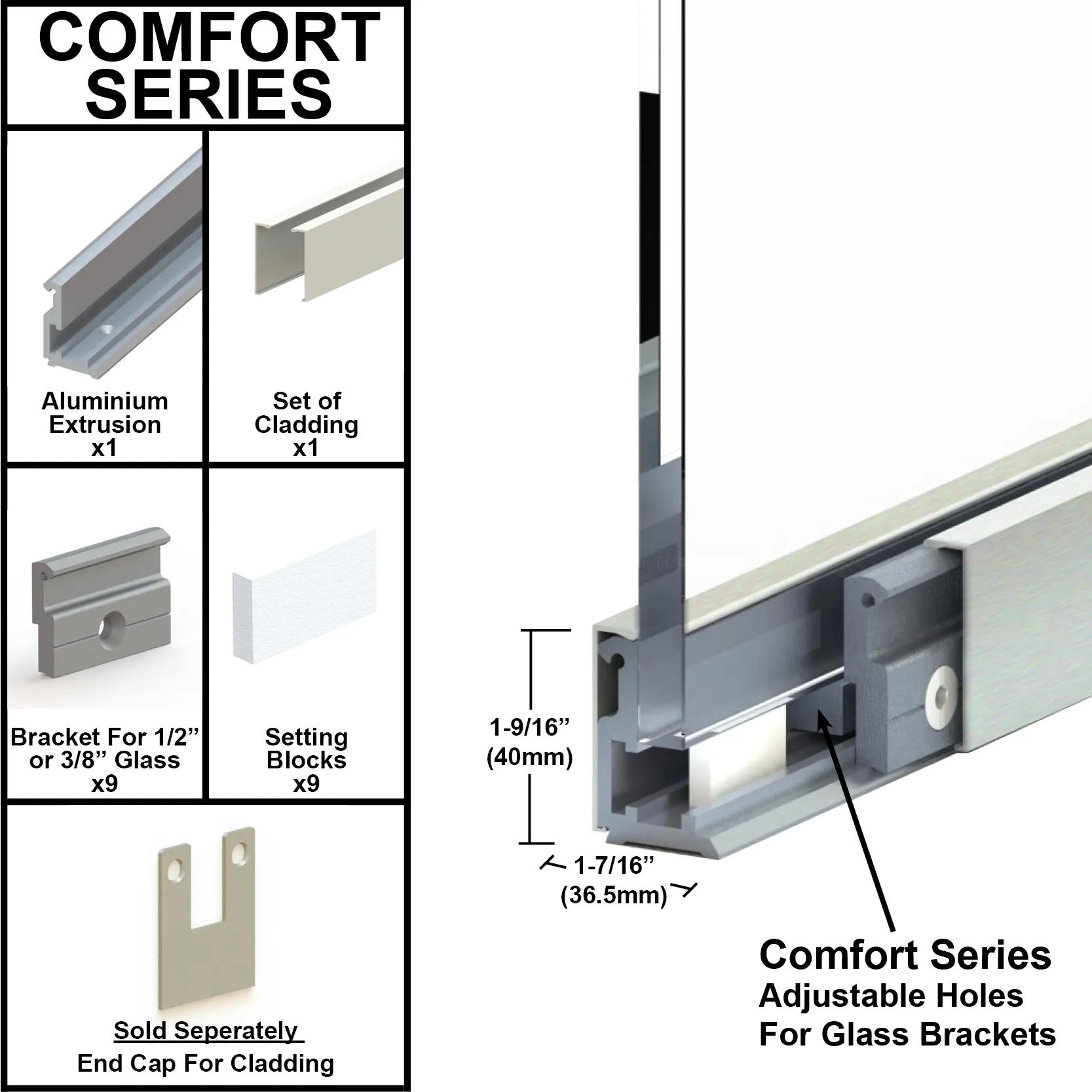

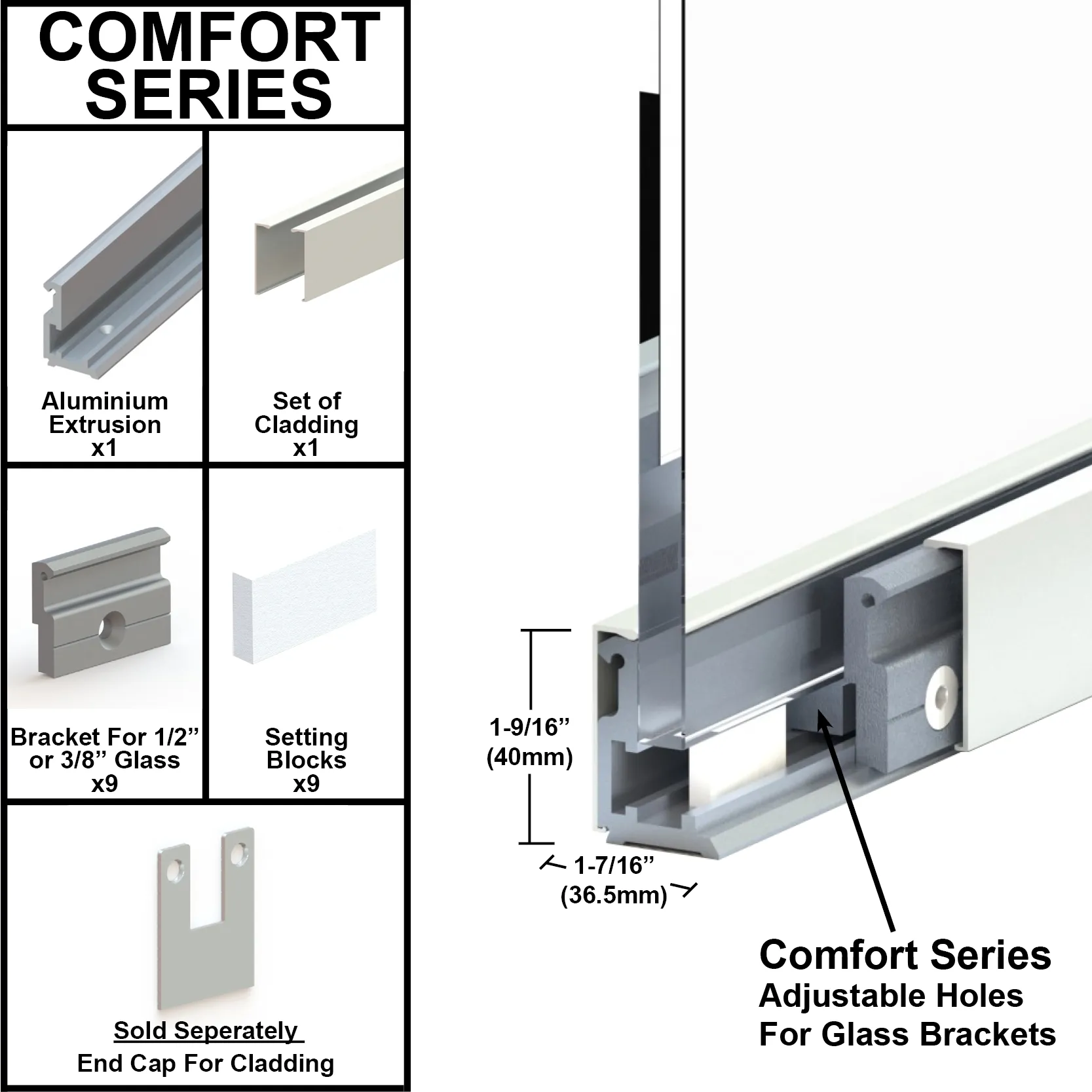

• Overall Cross Section Size: 1-9/16" x 1-7/16"

• Glass Compatibility: Suitable for 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass

• Adjustable Mounting: Features adjustable holes for glass bracket installation, allowing precise alignment

• No Glass Drilling Required: Eliminates the need for holes in the glass, simplifying setup

• Available Length: 10FT (120") header length for versatile application

• Efficient System: Two-piece front load clamp-on system, ideal for applications where lift and drop glazing isn’t possible.

Included in Kit:

• Aluminum Extrusion x1
• Adjustable Channel brackets with screws x9
• Setting blocks x9
• Set of cladding x1

Finishes Available:

• Brushed Anodize Aluminum
• Matte Black Aluminum
• Satin Anodized Aluminum
• Custom Finishes (contact: )

For further specifications or custom length requests, please contact us at
